SCULPFUN S9 Laser Engraver Machine 5.5 W

Introducing the S9 Laser, the pinnacle of cutting-edge technology in laser engraving. Harnessing the power of 90W laser beam shaping technology, the S9 offers precision, speed, and versatility like never before. With its ultra-fine 0.06mm sharp laser focus, it can effortlessly cut through various materials, while the fast-focusing design ensures a user-friendly experience.

Built with a solid and easy-assembly structure, the S9 is both durable and convenient. Safety is paramount with its new eye protection design, and wide compatibility allows for seamless integration with various engraving software.

Discover the Features of the SCULPFUN S9 Laser Engraver Machine 5.5 W

• 90W laser beam shaping technology: Ultra-fine 0.06mm sharp laser focus for precise cutting
• Fast-focusing design: Slide and tighten screws for quick and easy focus adjustment
• Solid and easy-assembly structure: Robust full-metal construction for enhanced engraving accuracy
• New eye protection design: Filters 98% of UV light, no need for goggles during engraving
• Wide compatibility: Works with popular engraving software and supports multiple file formats
• Safe design: Equipped with a convenient power switch and fixing holes for stability
• A4 steel pad: Includes a free steel pad for table protection against laser damage
• Square measuring ruler: X and Y-axis with precise scale lines for quick size measurement
• Large engraving area: 410x420mm to meet various engraving needs.

S9 utilizes advanced 5.5W diode laser technology for beam shaping, featuring an ultra-fine 0.06mm laser focus. It enables super cutting precision and penetration, capable of cutting 15mm thick wood, 10mm acrylic, and engraving ceramics and 304 stainless steel directly. This almost surpasses the performance of a 90W CO2 laser.

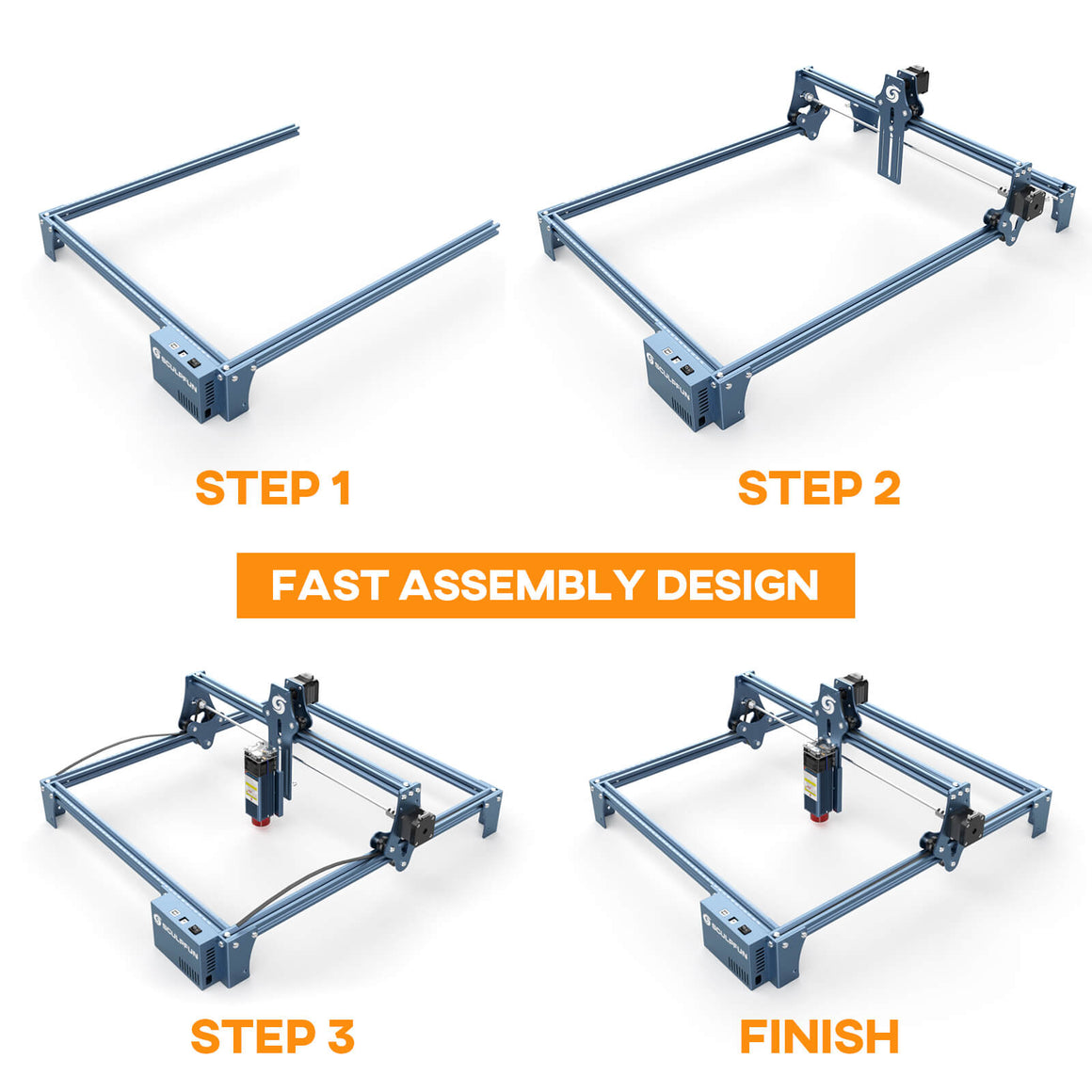

Solid and Easy-assembly Structure Design

The machine features a solid and easily assembled full-metal structure, ensuring enhanced engraving accuracy. The design allows for simple assembly, taking just 10-20 minutes to complete. The durable structural frame is open to upgrades, allowing you to replace lasers during use or extend the engraving area by adding longer metal beams.

Safe Design

With a focus on safety, the machine boasts a unique and convenient power switch, setting it apart from others. It also features reserved fixing holes on its four feet and body structure, allowing for easy and secure attachment of the machine and data cable.

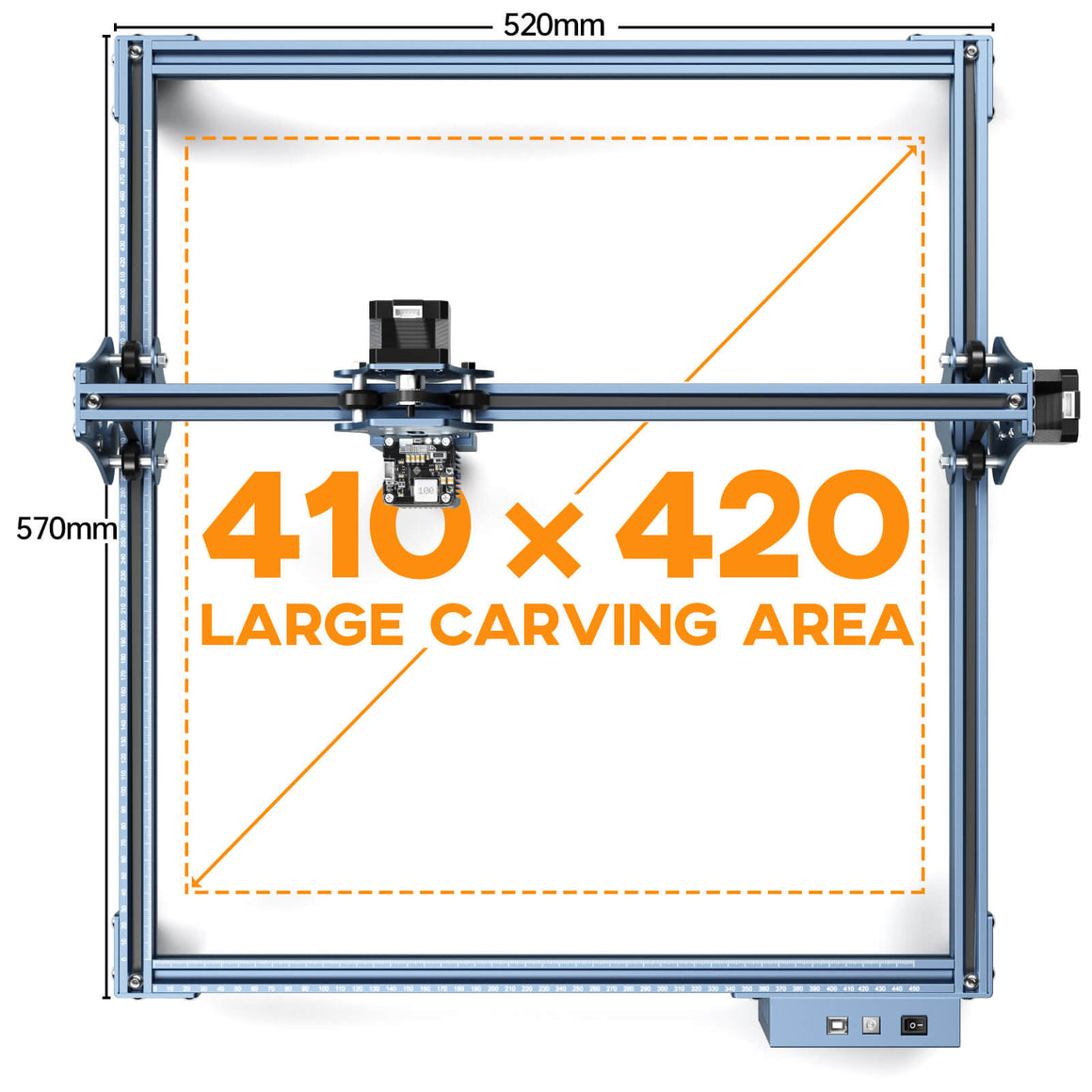

Versatile Square Measuring Ruler for Precise Engraving

Equipped with precise scale lines on both the X-axis and Y-axis, our square measuring ruler enables quick and accurate measurements of engraving objects. With a large 410x420mm engraving interval, it meets diverse engraving requirements with ease.

High Precision Laser Cutter and Engraver for Various Materials

This laser cutter and engraver offer high precision capabilities for a wide range of materials. It excels in engraving materials such as wood, paper, cardboard, plastic, white, PCB board, aluminum oxide, 304 stainless steel, ceramic, and dark stone. Additionally, it efficiently cuts through wood, acrylic, cardboard, fabric, bamboo, plastic board, and KT board.

Tech Specifications of the SCULPFUN S9 Laser Engraver Machine 5.5 W

• Product model: SCULPFUN S9
• Engraving size: 410*420mm
• Engraving/cutting material：
• Engraving materials: wood, paper, cardboard, plastic, white, PCB board, aluminum oxide,  304 Stainless steel, ceramic，dark stone
• Cutting material:  Wood, acrylic, cardboard,  fabric, bamboo, plastic board, KT board
• Laser effect power: 90W   (cutting effect compared to 90W CO2 laser)
• Machine Electricity Power: 30W  (It has nothing to do with cutting or engraving performance,just electricity consumes)
• Diode laser power: 5.5-6W  (Please note that this is light energy and not electric energy)
• Laser wave length 450±5nm
• Engraving accuracy: 0.01mm
• Focusing method: fixed focus laser + sliding device
• Laser protective cover: The light filter cover on the laser protects the user's eyes and prevents animals grabing the laser spot.
• Operating software: LaserGRBL, LightBurn, LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
• Data transmission method: USB connection
• Power supply: International universal standard power input: 100-240V AC, 50/60HZ output: 12V 5A
• Equipment net weight: 3.0kg
• Package weight: 4.4kg
• Packing size: 615*345*130mm
• Certification: CE FCC RoHS FDA IEC

What's in the BOX?

• 1× X axis assembly
• 2× X shaft
• 2× Y shaft
• 1×control box module set
• 3×support feet
• 1×laser module set
• 1×12V 5A power adapter
• 1×power plug
• 1×USB cable
• Step 1~5 Screw installation package
• 2× belt
• 1× T-shaped M5 screwdriver
• 1× L-shaped M4 screwdriver
• 1× L-shaped M3 screwdriver
• 10×Tie
• 1× 8-10mm nut wrench
• 1× brush
• 1× Laser goggles
• 1× 10x10cm  wood chip 3mm thickness
• 1× 10x10cm  wood chip 10mm thickness
• 1× A4 size steel desktop protection pad
