Description

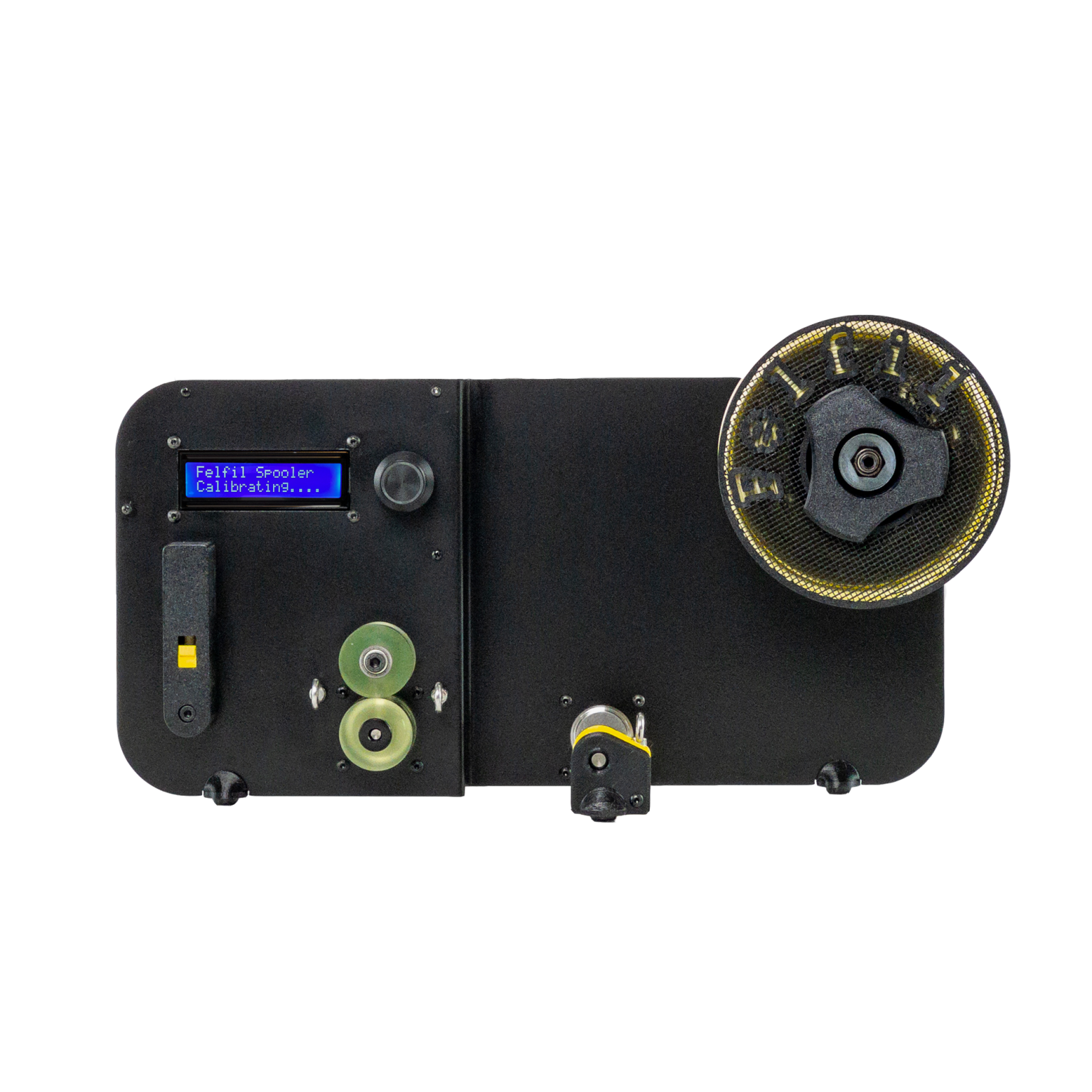

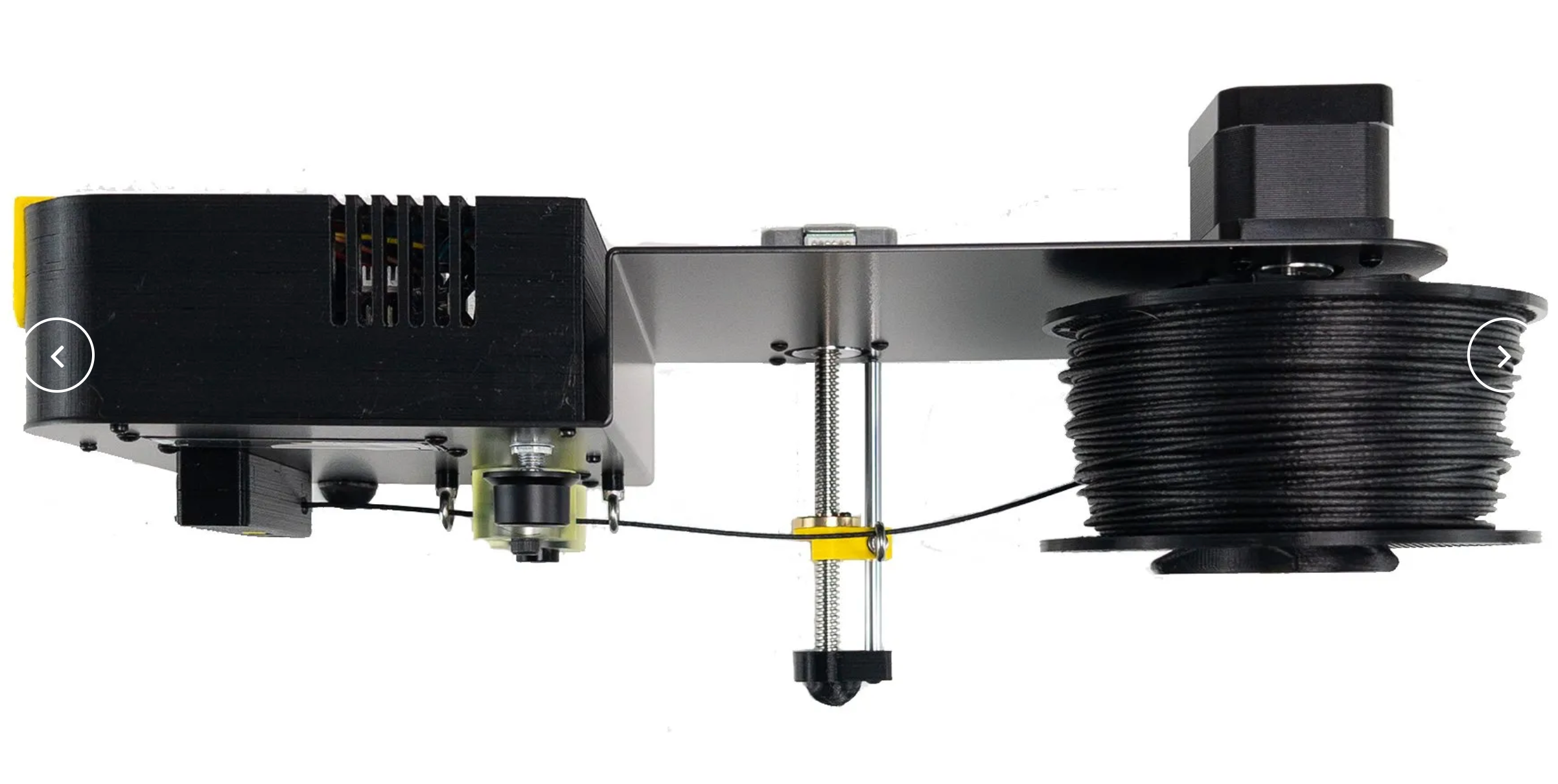

The Felfil Spooler+ is a precision filament spooler for universities, R&D labs, and makerspaces that already own a compatible extruder. Its high-precision optical sensor continuously measures and auto-corrects filament diameter during spooling — available from 3DCraftMakers, the authorized US Felfil reseller and distributor.
10 μm
Optical sensor precision
1.75 mm
Target diameter (0.5–3 mm range)
Auto
Speed adjustment — no manual tuning
Real-time
LCD diameter readout
Precision filament spooler — operational overview
10 μm
Optical sensor resolution
4 modes
Material preset profiles
220 mm
Max spool diameter
12V DC / 30W
Power input
Standalone precision spooling — integrates with any compatible extruder
Set a target diameter, select a material mode, and the Spooler+ manages everything else. The optical sensor samples filament diameter in real time and adjusts puller speed automatically — producing consistent output without manual intervention.
Works with the Felfil Evo Extruder or any compatible extruder outputting 0.5–3 mm filament. Soft polyurethane rollers protect filament integrity across flexible and brittle materials alike.
Felfil Spooler+ — full technical specifications
| Optical sensor | High-precision, up to 10 micron resolution |
| Diameter range | 0.5 mm – 3 mm output |
| Power input | 12V DC, 30W |
| Voltage | 110/230V compatible (via extruder power supply) |
| Weight | 3.8 kg |
| Dimensions | 348 × 175 × 50 mm (spooler) + 240 × 50 mm (fan array) |
| Rollers | Soft polyurethane — prevents filament crushing |
| Spool max diameter | 220 mm |
| Spool max width | 100 mm |
| Display | LCD with live diameter readout |
| Spooling modes | Soft (ABS/HIPS/PLA) · Medium (PETG/TPU) · Hard (Nylon) · Manual |
| Auto adjustment | Puller speed auto-corrects to maintain target diameter |
| Ships | Fully assembled, ready to operate |
| Compatible with | Felfil Evo Extruder and any extruder with compatible output |
Why labs choose the Felfil Spooler+
10 μm optical sensor
Real-time diameter measurement — continuously corrects puller speed to maintain target output
LCD live diameter readout
Monitor filament diameter continuously without interrupting the spooling process
Automatic speed adjustment
Puller speed adapts dynamically — consistent filament diameter without manual tuning
Soft polyurethane rollers
Grips filament without crushing — safe for flexible materials like TPU and brittle ones like PLA
4 material mode presets
Soft / Medium / Hard / Manual — tuned tension profiles for each material class
Universal extruder compatibility
Works with Felfil Evo or any extruder outputting 0.5–3 mm filament — standalone upgrade
Compatible materials
PLA
ABS
HIPS
PETG
TPU
Nylon
HDPE
LDPE
TPE
PVA
PA (6, 12)
PMMA
Step 3 of the Felfil closed-loop filament recycling system
Where the Spooler+ fits in the full recycling workflow
01
Shred
Felfil Shredder+ 750
02
Extrude
Felfil Evo Extruder
03
Spool
Felfil Spooler+ — this product
04
Print
Use your own printer
Need an extruder too? The Felfil EVO Extruder & Spooler Bundle — $2,399 includes both the Evo Extruder and this Spooler+ in one package, ready to pair with any shredder.
Want the complete shred-to-spool system? The Full Bundle (FRBN750) — $4,399 adds the Felfil Shredder+ 750 for a fully closed-loop recycling workflow — shred, extrude, and spool within your facility.
Filament spooling for universities, labs & makerspaces
Universities & engineering labs
Upgrade existing extruder setups with precision auto-corrected spooling
R&D facilities
Consistent diameter output for repeatable material research and testing
Makerspaces
Add a precision spooling stage to an existing filament recycling workflow
Sustainability programs
Close the loop on filament waste — spool recycled material in-house for reuse
Videos
Felfil EVO & Spooler+ system demo
Complete Felfil recycling system overview
Ready to add precision spooling to your lab?
Request a formal quote or procurement documentation for your institution. Procurement support available across the United States.
